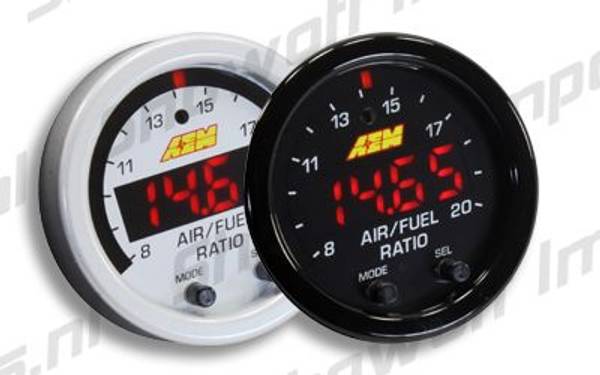

Universal AEM UEGO X-Series Wideband Controller Gauge (AFR)

bestillingsvare!! importvarer fra enkelte land kan ta lenger tid (kontakt oss gjerne på live på chatten eller epost før bestilling) vi beklager dette --leveringstiden kommer ann på levrandør , hvem land og lager status/produksjon hos forhandler

4.988,-

Informasjon

The Fastest Responding Wideband With Patented X-Digital Technology (Patent 9,575,030)

X-SERIES WIDEBAND UEGO CONTROLLER FEATURES:

X-Series Wideband UEGO AFR Controller Gauge were fastest responding wideband air/fuel ratio controllers in an independent test vs. 17 competitor wideband AFR controllers
Includes Bosch 4.9LSU wideband UEGO sensor
Factory calibrated resistor does not require free-air calibration, but technology allows for free-air calibration as sensor ages if user desires
Compatible with vehicle/system voltages up to 16V
0-5V & RS232 output for data logging and feedback control, AEMnet (CANbus) for data logging and daisy-chaining multiple controllers up to 16 cylinders
Can display AFR values in hundredths of %
52mm gauge diameter and slim 0.825” gauge depth
Gauge cup depth only .200” deep!
Auto dimming feature
User configurable display via buttons on the gauge face for changing AFR values, Lambda and O2%, and 3- or 4-digit display
Black bezel and black dual faced faceplate included (gauge only, silver bezel/white gauge option sold separately, PN 30-0300-ACC)
Locking connectors

AFR VALUE RANGE BY FUEL TYPES:

Display Gasoline values from 8.0:1 to 20.0:1 AFR
Display Lambda values from .55 to 2.00
0-5V Output Gasoline values from 8.5:1 to 18.0:1 AFR
CANbus Output Gasoline values from 8.0:1 to 20.0:1 AFR
CANbus Output Lambda values from .55 to 2.00
0-5V Output Lambda values from .58 to 1.23
0-5V Output E85 values from 5.7:1 to 12.0:1 AFR
0-5V Output Ethanol values from 5.2:1 to 11.0:1 AFR
0-5V Output Methanol values from 3.75:1 to 8.0:1 AFR
